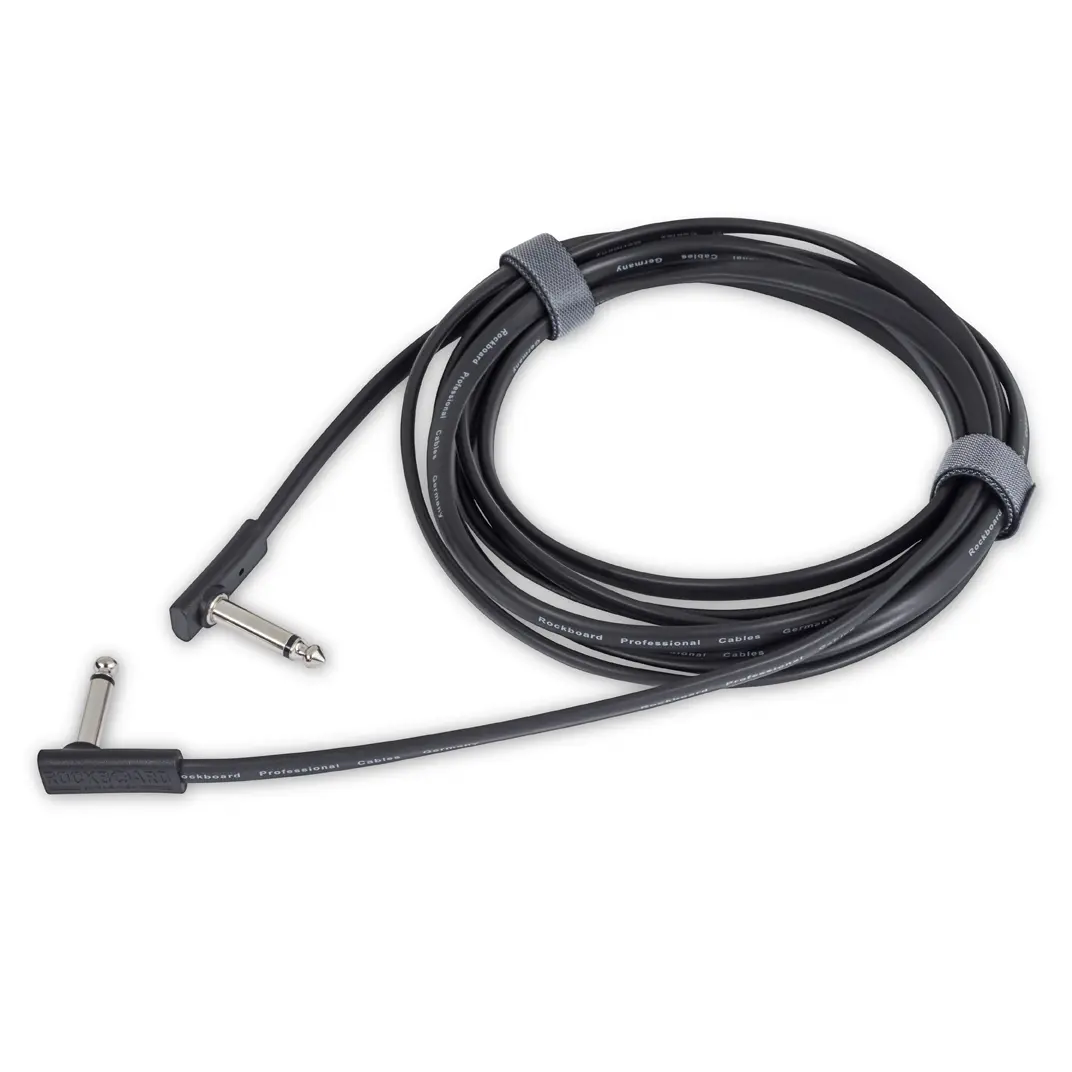

The RockBoard Flat Instrument Cable is designed to be extra flat and compact. The flat conductor cable effectively reduces twisting and prevents damage to the cable core.

The slim 6.3 mm jack plugs are especially space-saving and unobtrusive and ensure accurate and clean signal routing while retaining a pristine signal quality. The RockBoard Flat Instrument Cable is available in 6 different configurations and two lengths.

Choose a length

118.11in

236.22in

Article No.: RBO CAB FL 300BLK AA

$6.99

View in shop

Details at a glance

flat instrument cable

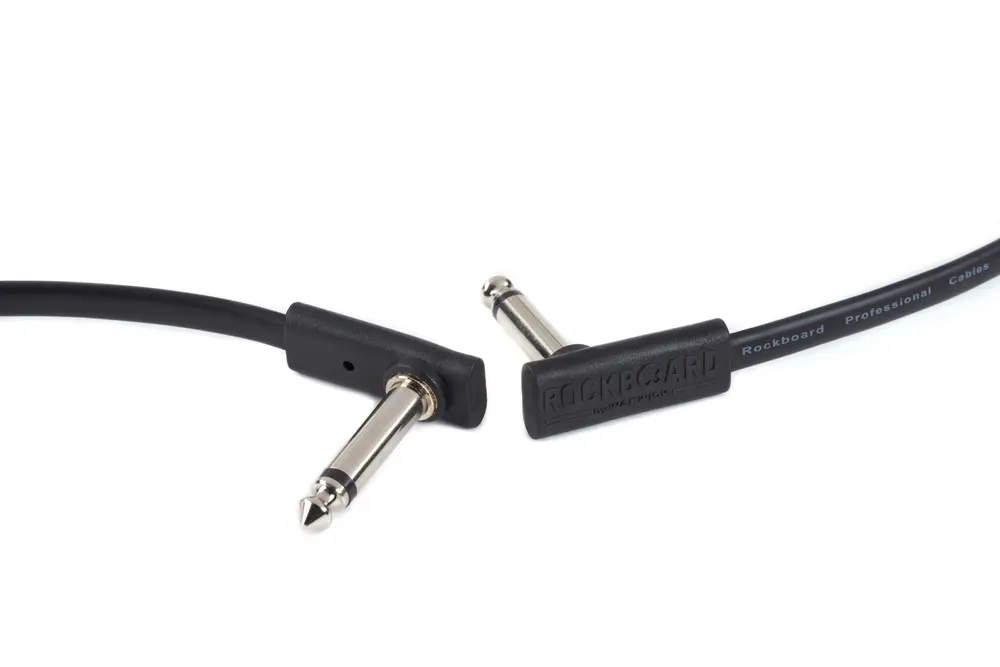

super flat 6.3 mm mono audio plugs (angled/angled)
operating temperature -15° C to +70° C (5° F to 158° F)
flexible twisted copper shielding 34 x 0.12 mm
flexible copper conductor 20 x 0.12 mm
signal insulation PE (polyethylene)
outer PVC insulation
capacitance conductor/shield less than 10 pF/decimeter
conductor resistance less than 10 mOhm/decimeter
Outer dimensions cable 7 x 3 mm (9/32” x 1/8”)
Outer dimensions plug 12.5 x 7.5 mm (31/64” x 19/64”)
length 300 cm (118 7/64")
black
