The RockBoard® LM 4 is a very compact four-channel line mixer capable of combining four mono line level input signals into one mono line level output. Each of the four input channels has its own amplifier and its own volume control and delivers professional low-noise audio quality. Its robust and compact design makes the LM 4 the ideal choice for studio and live situations. Ideal as a sub-mixer, for example for multiple keyboards, to avoid taking up valuable channels on the mixing console.

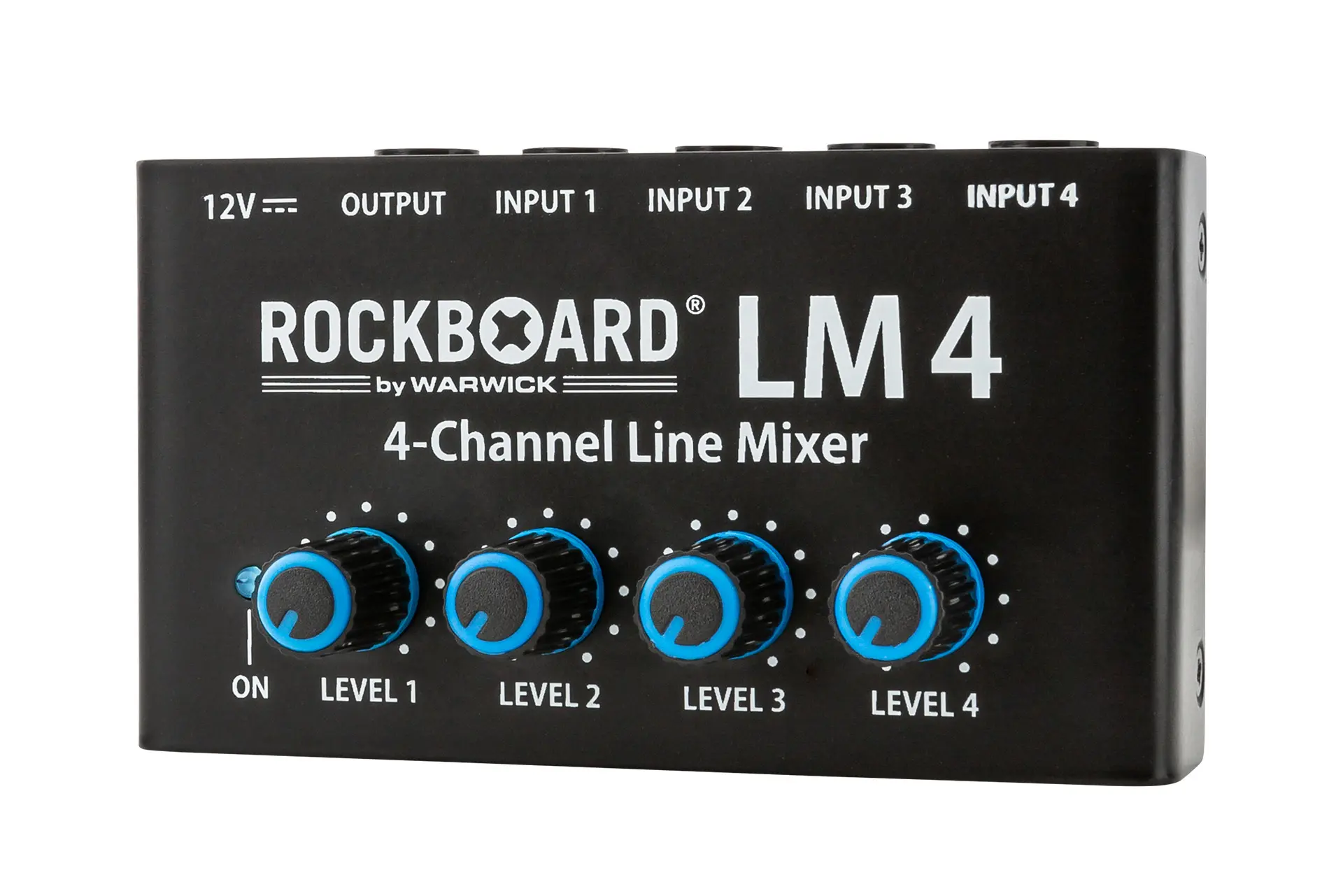

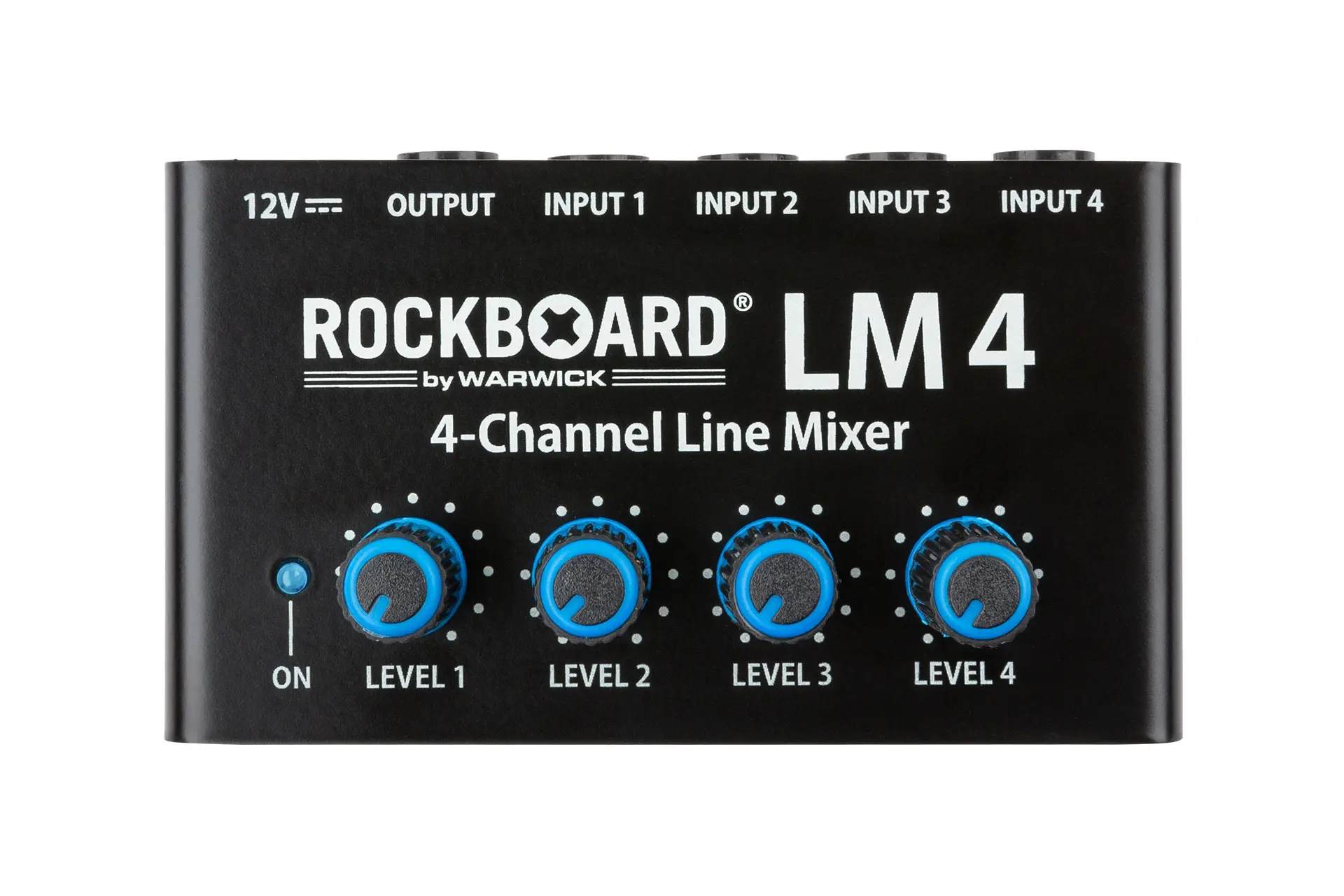

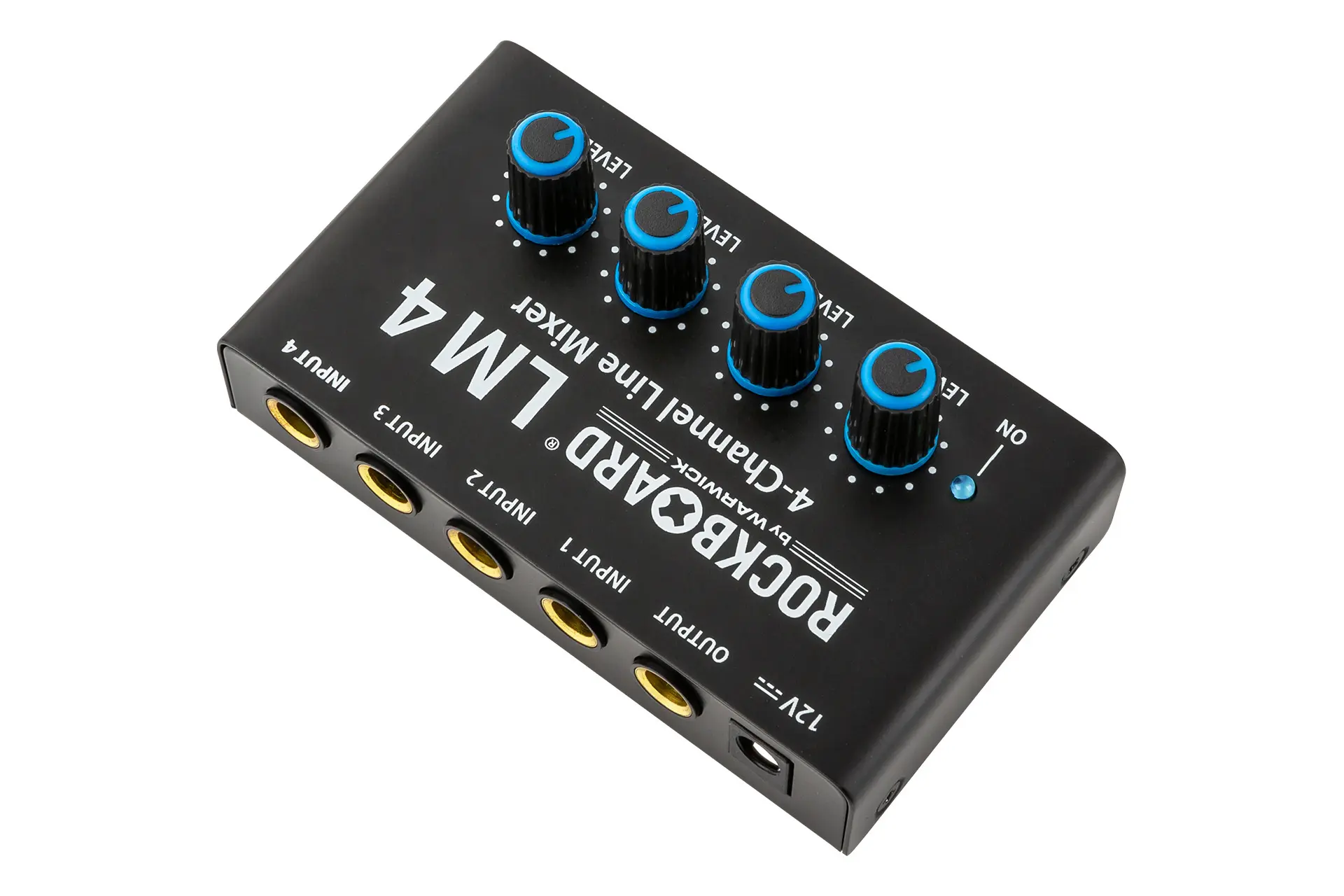

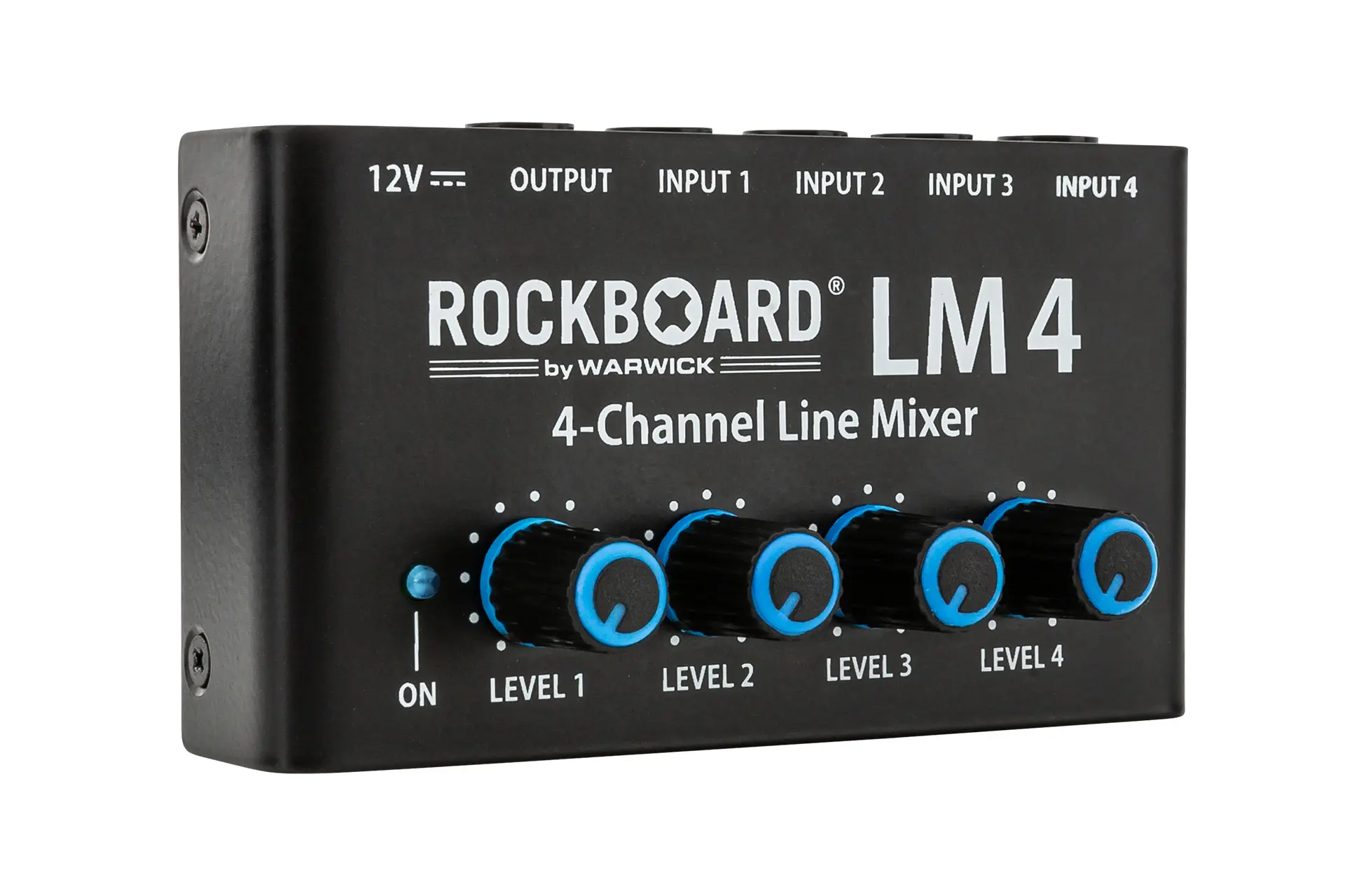

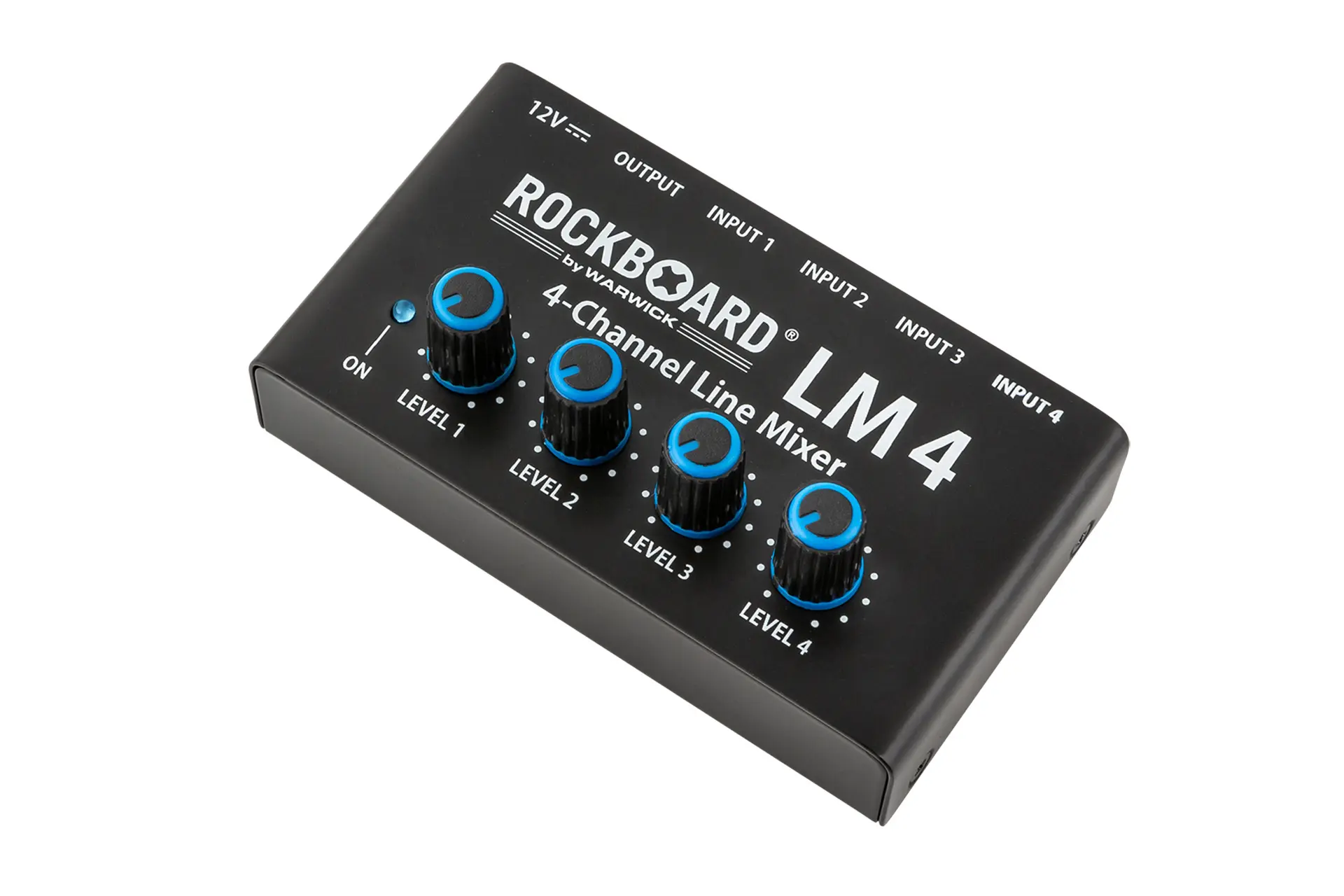

Rockboard LM 4 4-Channel Line Mixer

Article No.: RBO E LM 4

$79.50

View in shop

Details at a glance

compact four-channel line mixer for stage and studio applications
four separate high-performance amplifiers
separate volume control for each input
top sound quality at all volume levels
high-quality components and robust construction with metal enclosure
12 VDC / 20 mA, 2.1 x 5.5 mm barrel plug, center negative, power supply included
input : 4 x 6.35 mm (1/4") TS jack
output: 1 x 6.35 mm (1/4") TS jack
SNR: 95 dB
THD: 0.009 %
frequency response: +1 dB / -2 dB @20 Hz -22 kHz
dimensions (L x W x H) incl. knobs and feet: 102 x 58 x 45 mm / 4.02” x 2.28” x 1.77”
weight: 182 gr / 0.40 lbs

Manuals

Manual EN

Manual DE

Manual FR

Manual NL

Manual PL

Manual CZ
