Mini Mounting MOD

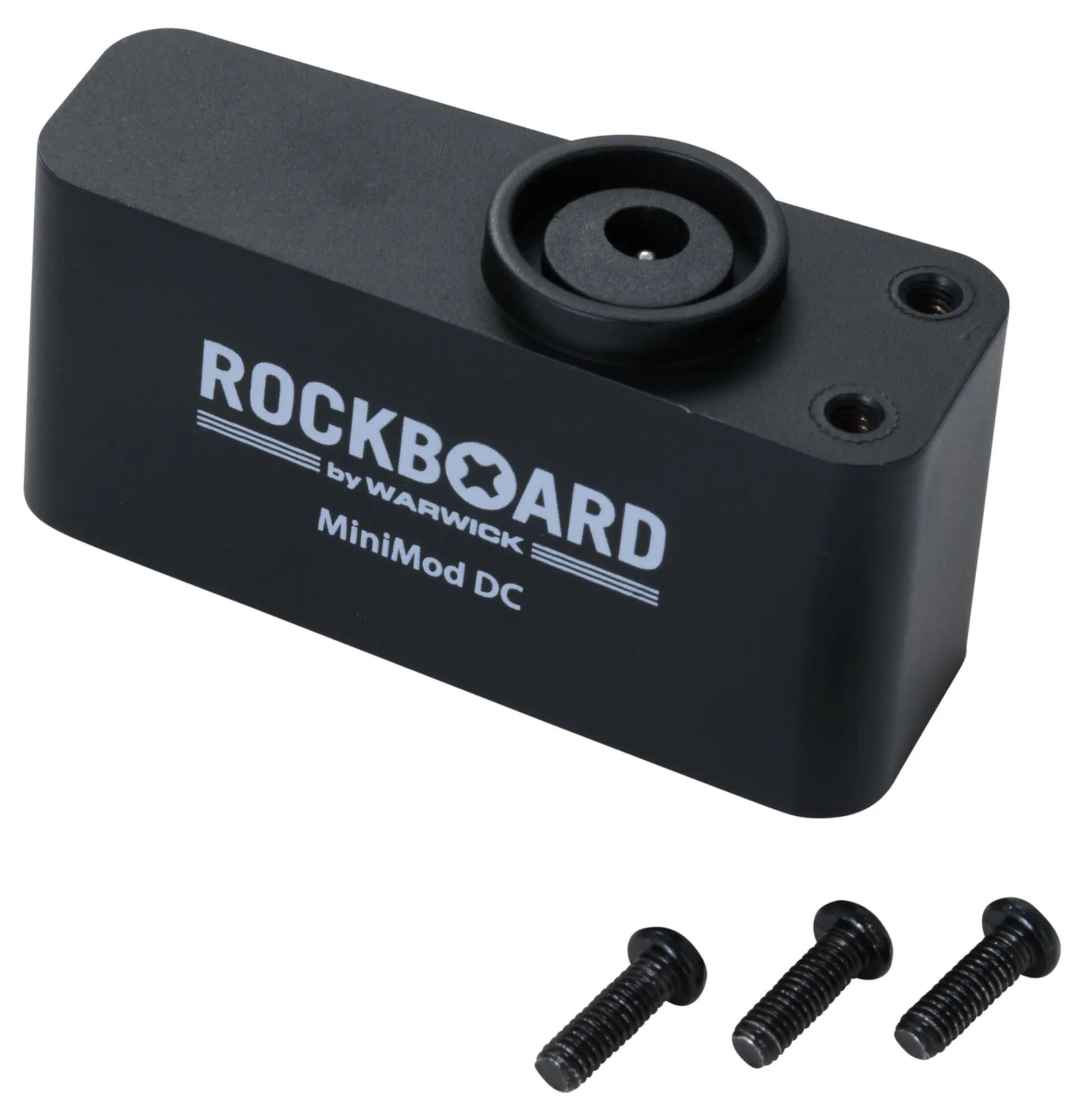

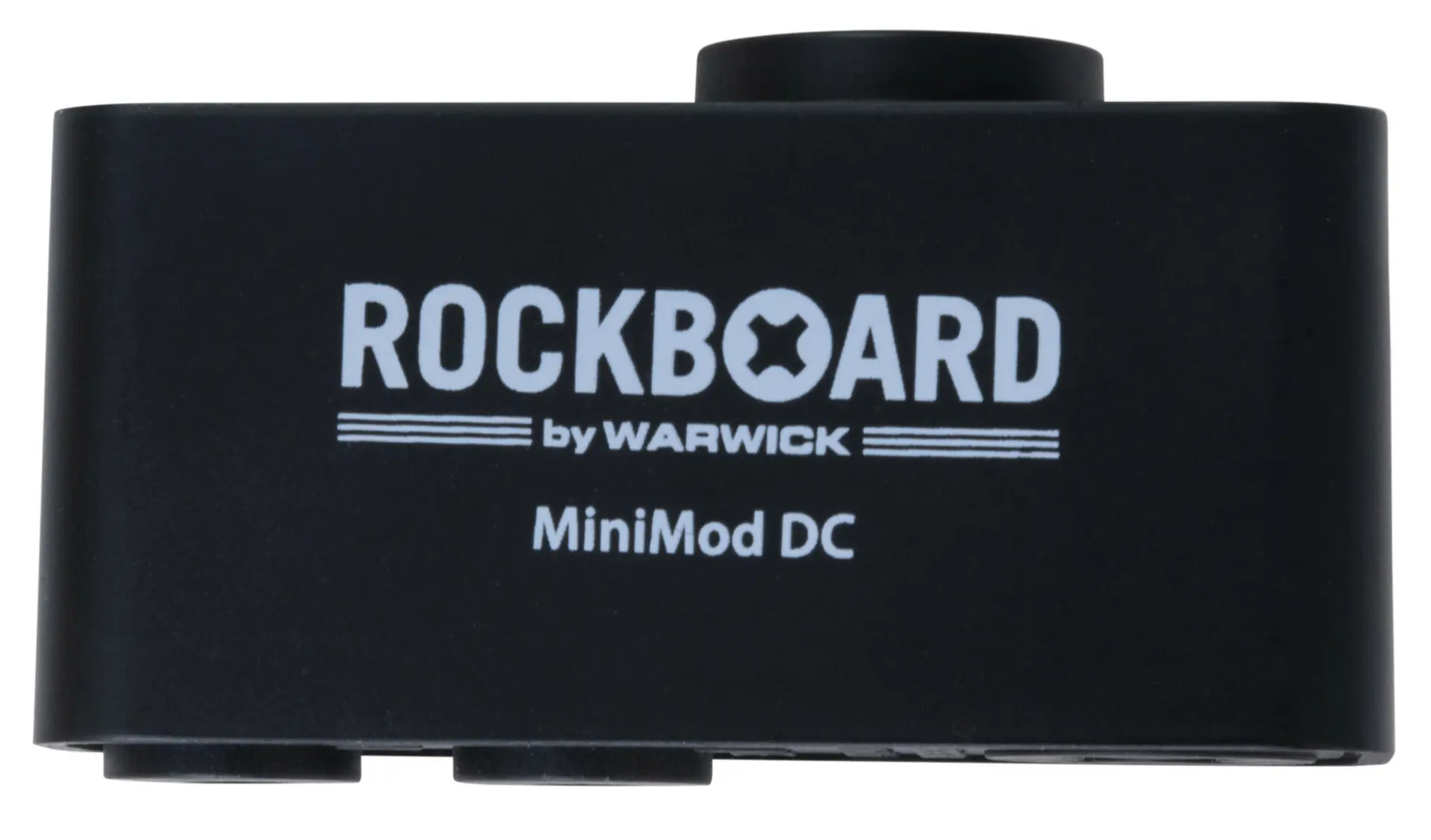

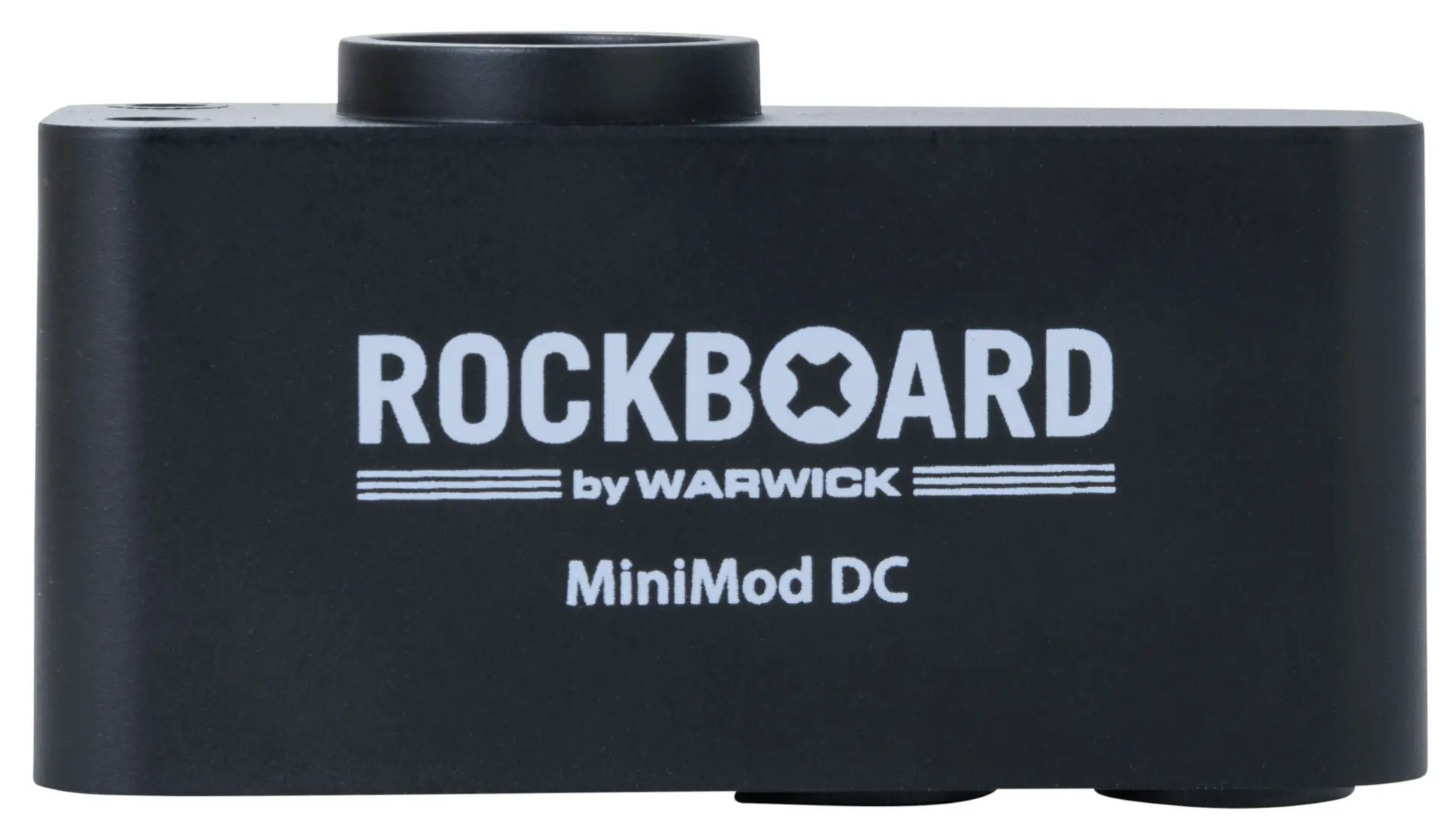

The Mini Mounting MOD DC provides convenient access to the setup's multi power supply without the hassle of routing the power cable under the pedalboard. It fits perfectly into the mounting holes of the LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards.

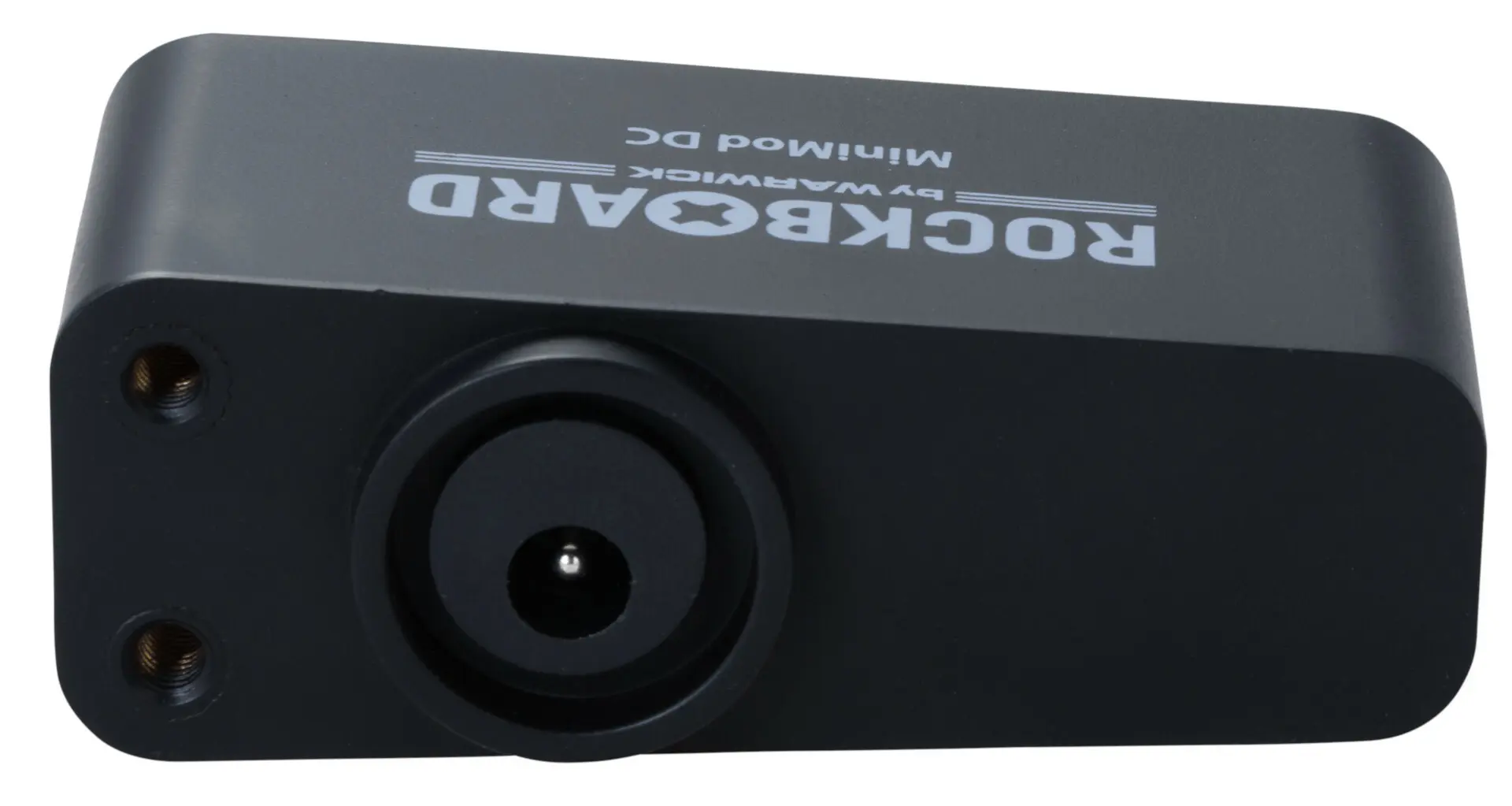

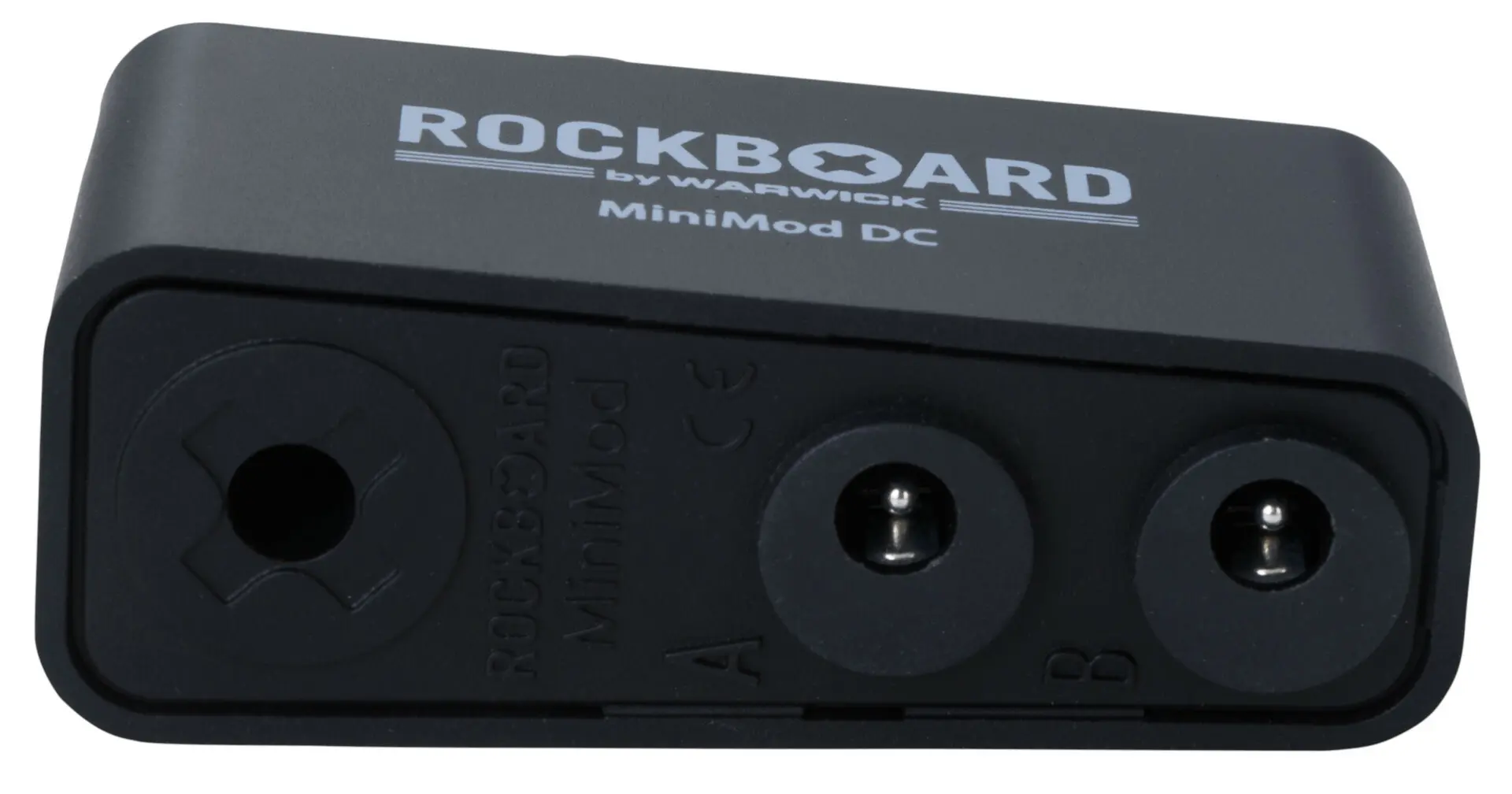

Central access to the power supply is provided by through-connected 2.1 x 5.5 mm DC jacks. Since the power connections are through jacks, it is also possible to power external pedals, such as a Wah, in the opposite direction. Instead of a multi-power supply, DC power cables or "daisy chain" distributors can be used to distribute power to the pedals. (Outputs A and B are wired in parallel).

*Note: The total current draw of all devices on the board should not exceed the output current of the connected multi-power supply or "daisy chain" connections to avoid damage to individual components. Make sure the voltage and polarity of the external power supply matches the requirements of the Multi Power Supply/Pedals.

The Mini Mounting MOD TRS provides convenient access to the signal supply of the pedals on the board. It fits perfectly into the mounting holes of the RockBoard® LED Light and is a versatile, clean mounting solution for all RockBoard® series pedalboards. Central access to the signal supply is provided by a 6.3 mm TRS stereo jack. Since the TRS jacks are pass-through jacks, it is also possible to route signals in the opposite direction to external pedals, such as a Wah. Using TRS stereo jacks also makes it easy to implement "send/return" applications (A- = tip and B- = ring).
