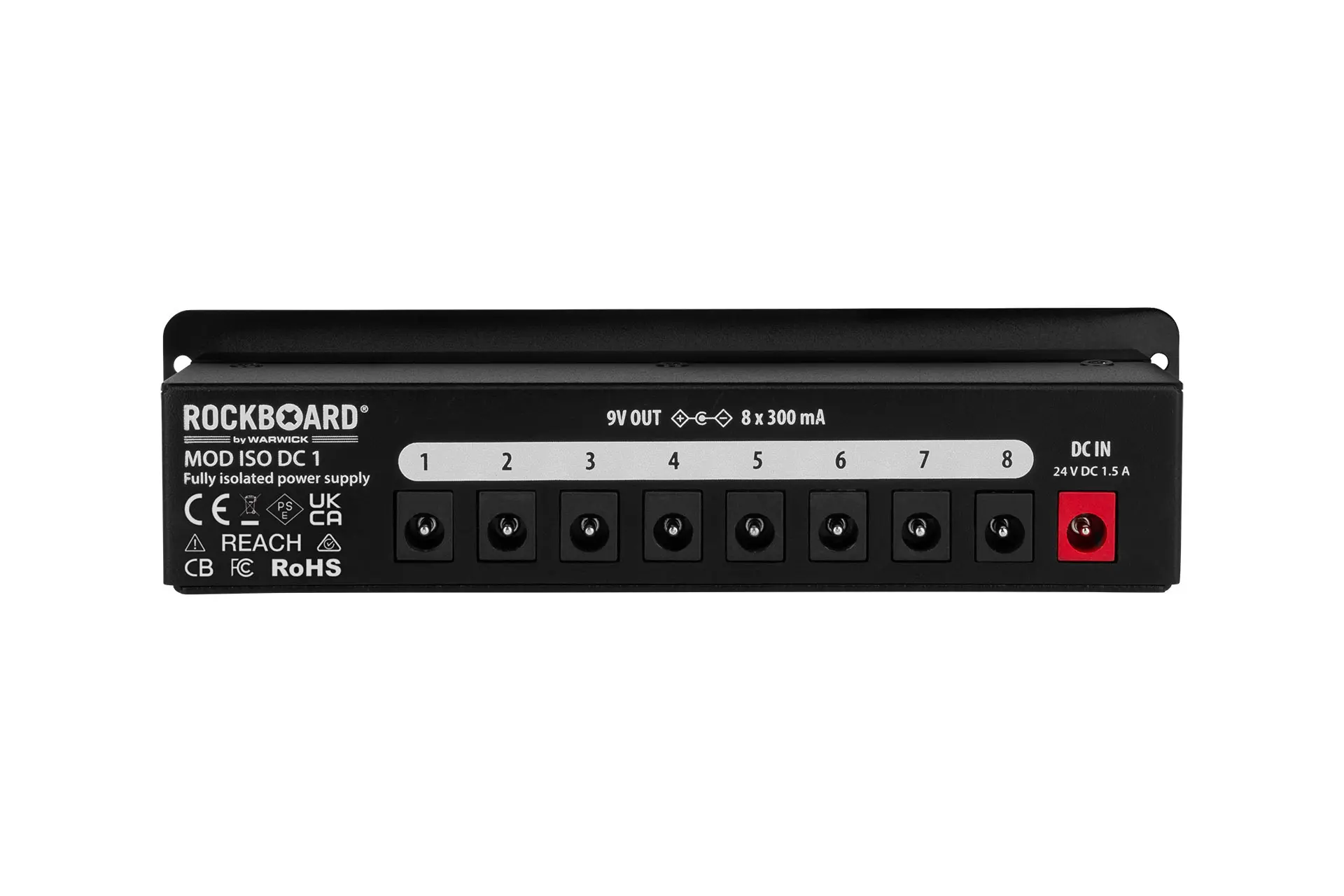

POWER MOD ISO DC 1
Multi-Power-Supply For Effect Pedals
The Power MOD ISO DC 1 is a multi-power supply for effect pedals and provides up to 9 electrically isolated, highly filtered 9 VDC power connections and one 5V USB connection.
It fits in a MOD slot on ROCKBOARD pedalboards, but, due to its removable front plate, it can also be used as a power supply for other pedalboards. The multi-power supply is designed to provide noiseless power to up to 9 effects pedals simultaneously. Sophisticated filtering technology effectively eliminates high-frequency noise. Separate short-circuit protection for each power slot protects the connected effects pedals from damage in the event of a short circuit.
Separate LED indicate healthy connections for individual each slot. Should a short circuit occur, only the affected power slot is switched off, leaving the rest of the effects rig operational.
Details at a glance
- multi-power supply for effects pedals
- provides transformer isolated and highly filtered power slots
- fits in a MOD slot on RockBoard® pedalboards
- compatible with most other pedalboards
- detachable front plate for mounting on top or underneath pedalboards
- advanced filter technology prevents high frequency noise
- external mains transformer prevents low frequency interference
- input polarity protection
- individual status LEDs and short circuit protection for all power slots
- 2 x strain relief clamps for connected cables
- input power: 24 VDC / 1.5 A
- outputs: 8 x 9 VDC, 300 mA each / 1 x 9 VDC output, 500 mA / 1 x 5 VDC USB-C, 2000 mA
- incl. 1 x 24 VDC power adapter (1.5 mA) with exchangeable multi-regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240V AC
- incl. 9 x RockBoard® Flat Power Cable, 60 cm (for connecting effects pedals)
- dimensions (L x W x H): 175 x 85 x 47 mm / 6.9" x 3.34" x 1.85" (with front plate) / 160 x 85 x 33 mm / 6.3" x 3.34" x 1.3" (without front plate)
- weight: 500 g / 1.1 lbs
