The RockBoard Power Block is a compact multi-power supply for effect pedals that provides 10 power connections to power up to 10 effects pedals in parallel. With a total of 1,200 mA available for the eight 9V slots and a total of 800 mA for the two 18V slots, you can easily power any modern effects pedal setup.

Included are 10 connection cables and an 18V DC mains adapter (2,000 mA) with interchangeable adapters for different types of outlets.

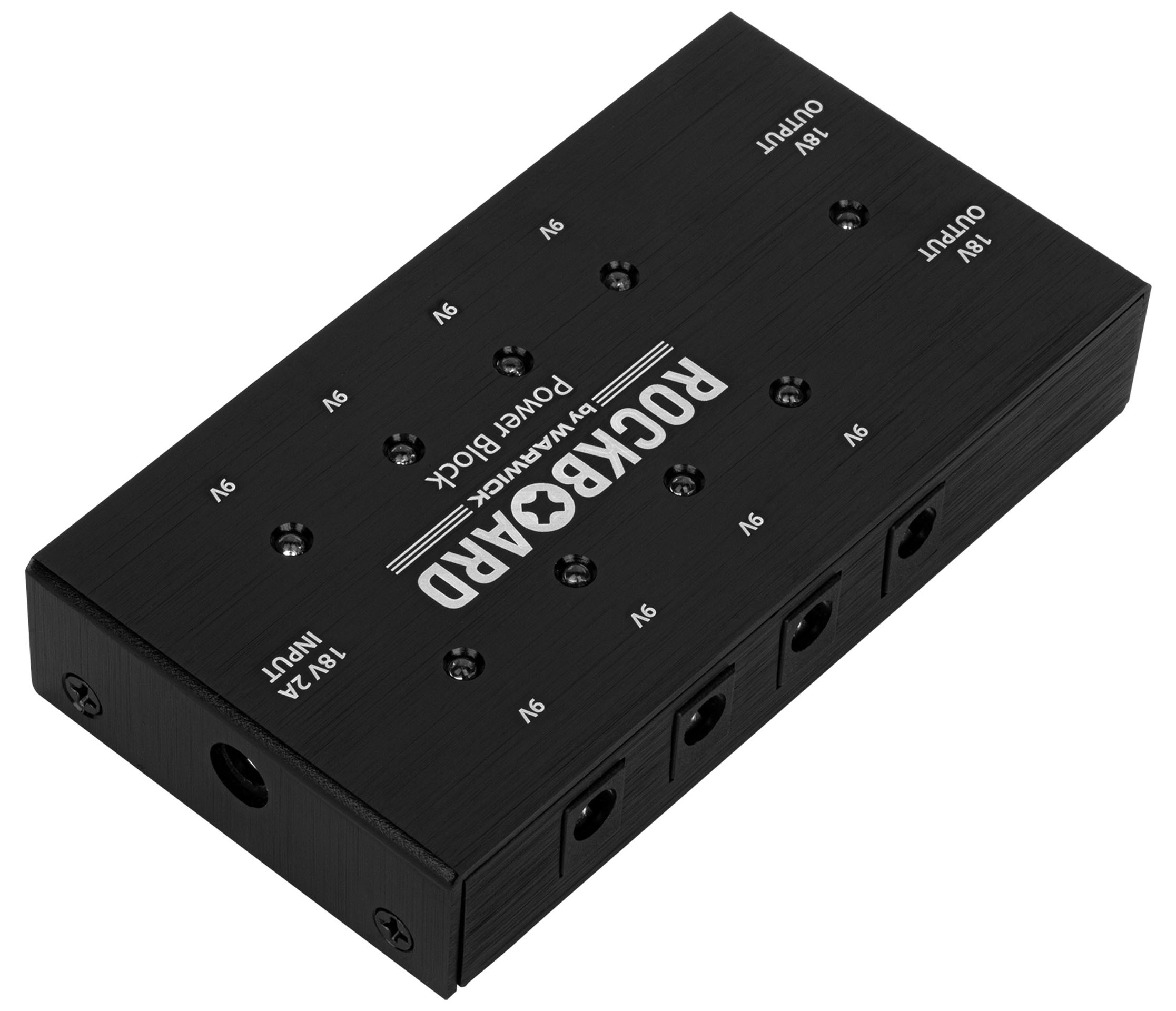

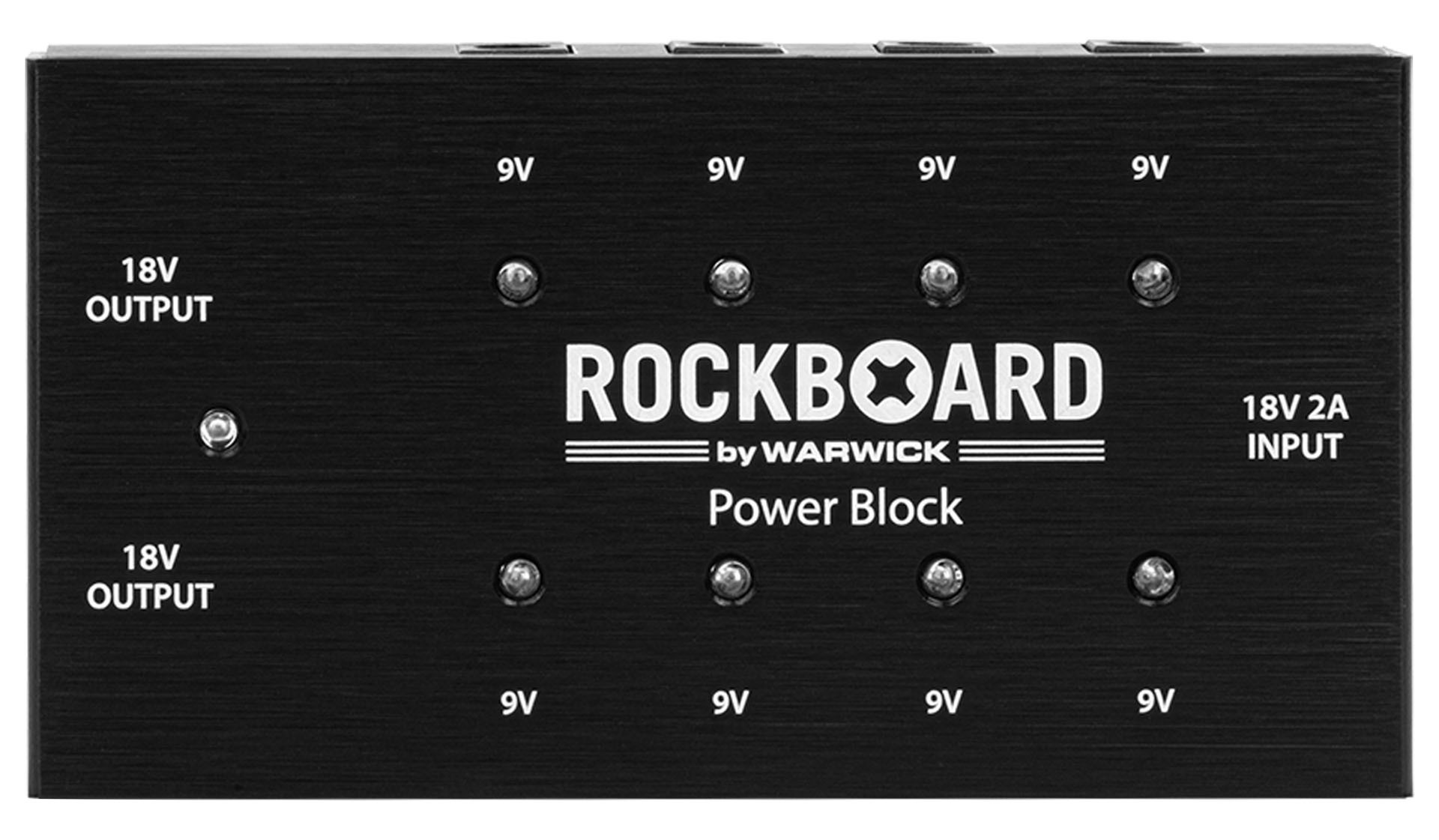

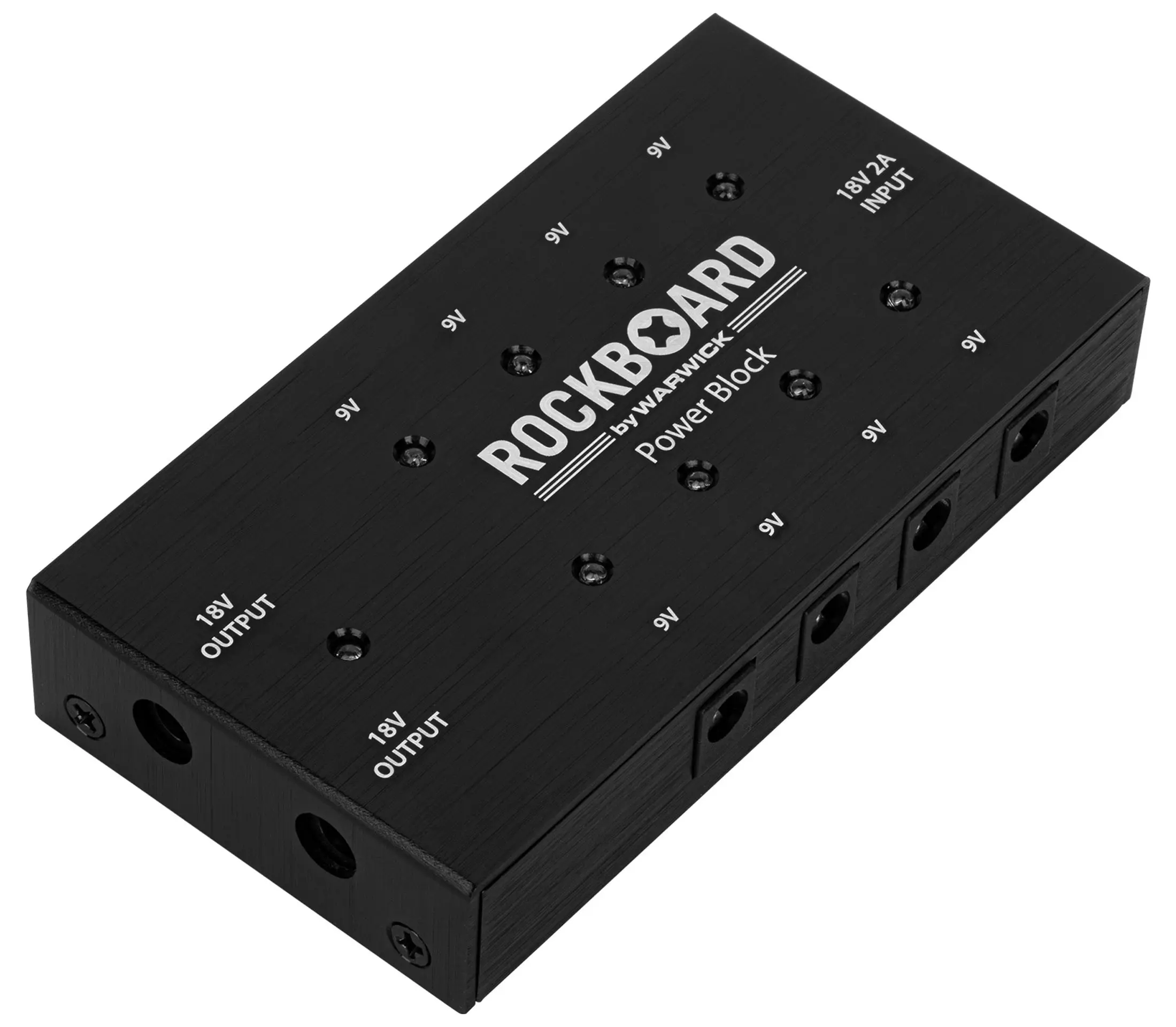

RockBoard Power Block - Multi Power Supply

Article No.: RBO POW BLO V2

$99.99

View in shop

Details at a glance

multi-power supply for effects pedals
8x 9V DC power slots, grouped, max. 1,200 mA total combined, 2.1 x 5.5 mm barrel plug, polarity (-) center
2x 18V DC power slots, grouped, max. 800 mA total combined, 2.1 x 5.5 mm barrel plug, polarity (-) center
short circuit protection for all power slots, designated red LEDs for each slot indicate short circuit or wrong polarity
max. total current output of 2,000 mA
input voltage 18V DC
incl. 10x RockBoard Flat Power Cable, 50 cm (for connecting effects pedals)
incl. 1x 18V DC power adapter (2,000 mA) with exchangeable multi-regional plug adapters (EU, UK, US/CA, AU/NZ), input voltage 100-240V AC
dimensions (L x W x H): 112 x 60 x 22 mm / 4 13/32" x 2 23/64" x 55/64"
weight: 150 g / 0.33 lbs

Manuals

Manual EN

Manual DE

Manual FR

Manual NL

Manual PL

Manual CZ
