PatchWorks - Solderless Patch Cable System
Everything tailored to your needs
The RockBoard® PatchWorks Solderless Patch Cable System offers the first true solderless two-piece, two-direction connector design on the market and was developed and designed in Germany. This means you always have the connector orientated they way you need it, as the connectors can easily be installed as angled or straight jacks.
The patented, easy-to-use design uses a two-piece plug with a slim and compact design, that saves pedalboard space and can be quickly and easily converted from straight to angled. With professional-grade, high-quality audio cable and gold-plated contacts, RockBoard® PatchWorks has everything you need for your pedalboard.
Build your own patch cables with the exact lengths you need to avoid signal loss by reducing unnecessary cable runs.
Details at a glance
- solderless patch cable system
- set for assembly of 5 patch cables

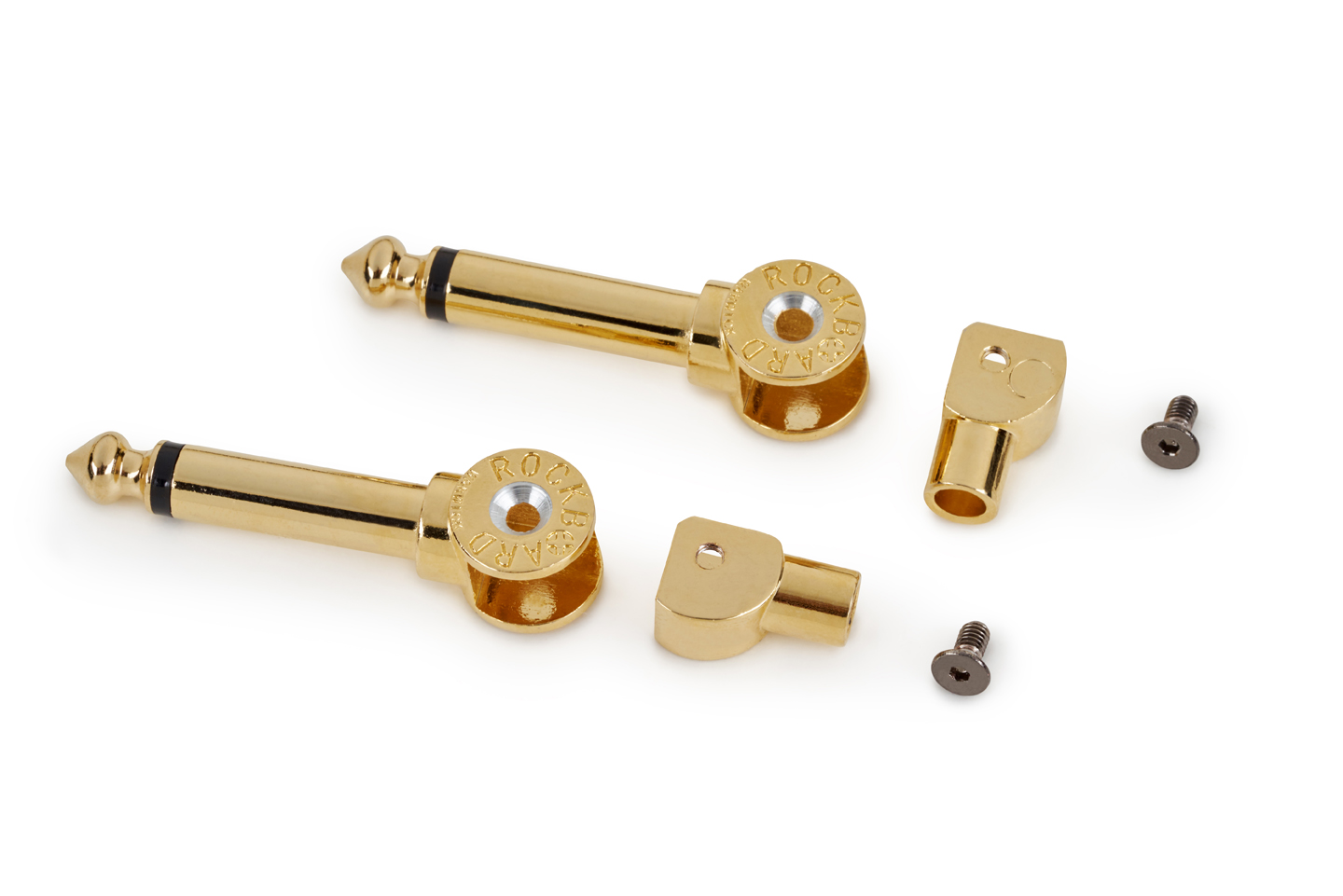

- unique 2-directional 2-piece connector design (patent pending)

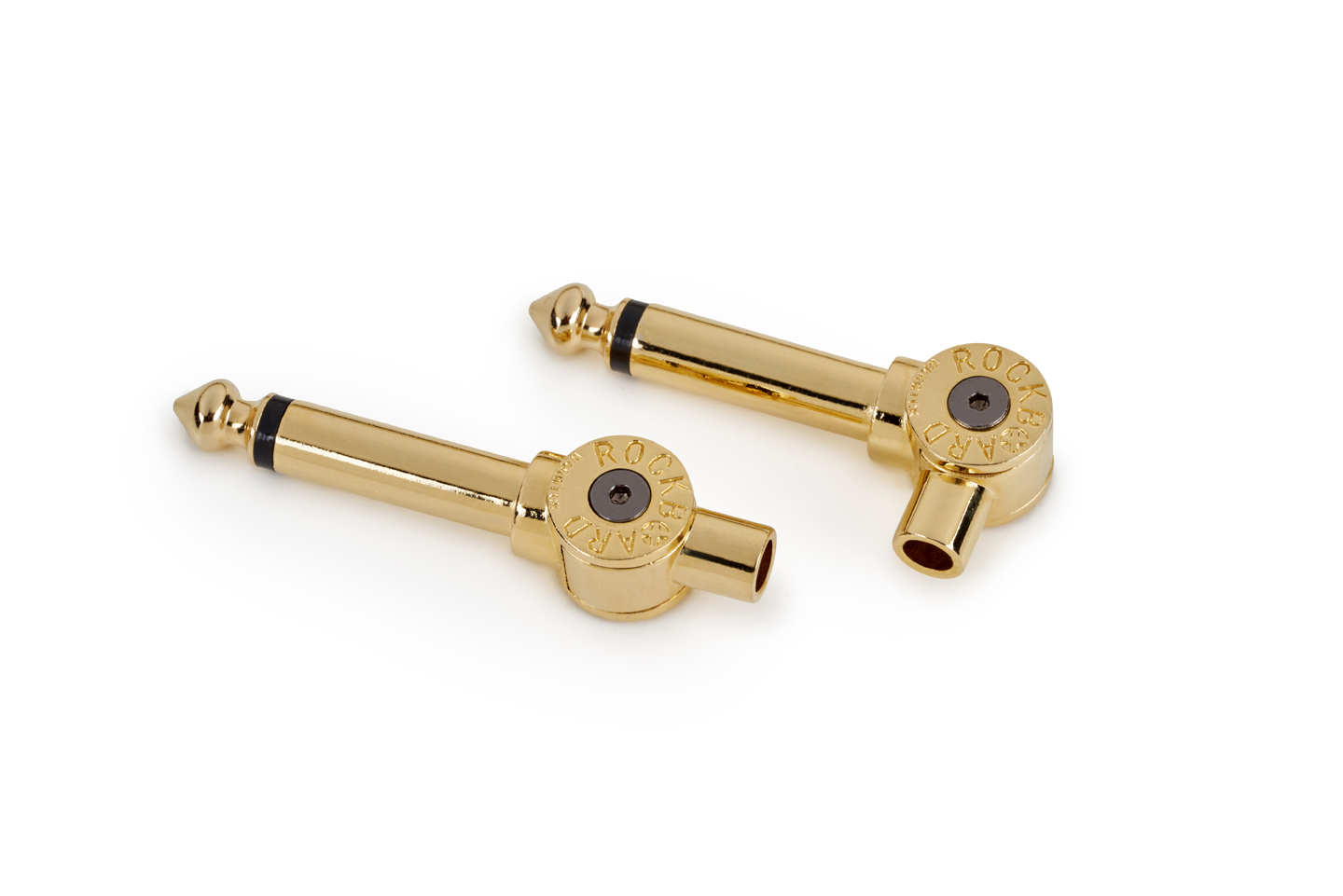

- can be assembled as either straight or angled plugs
- plug’n play design - no cable stripping required

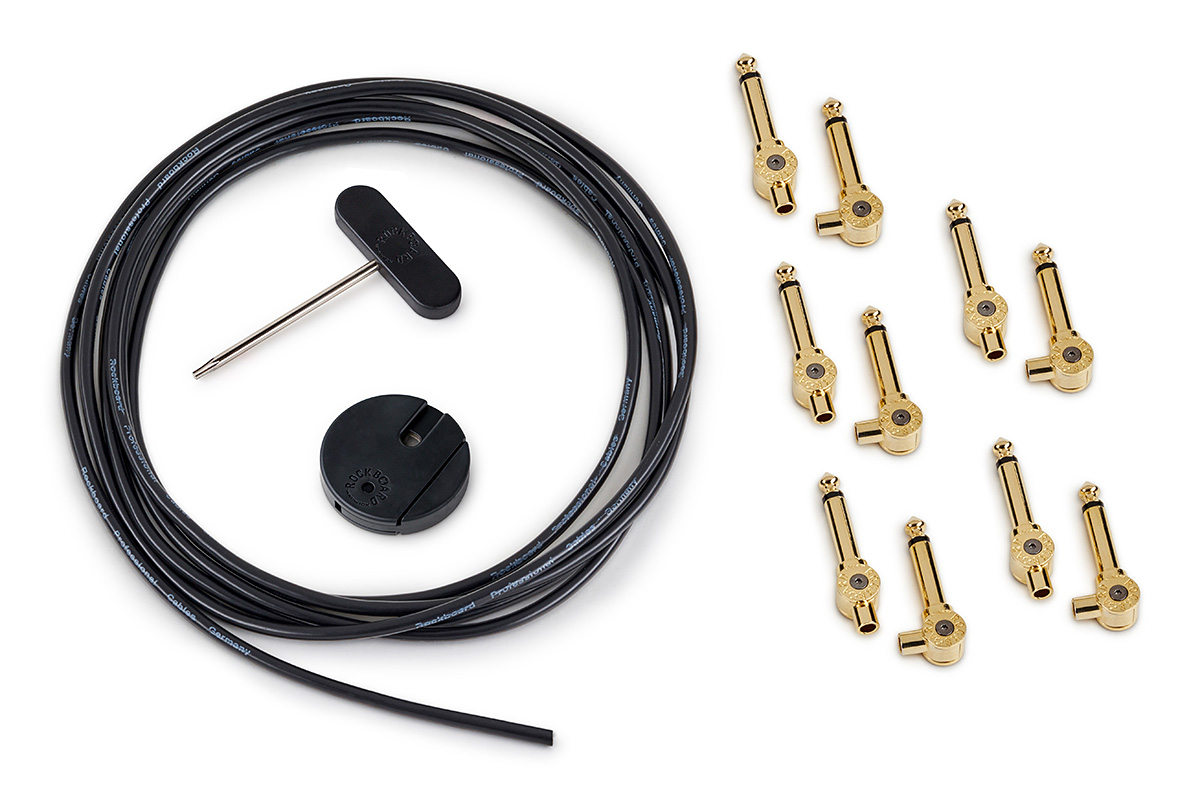

- includes 10 plugs and 300 cm / 118 7/64" cable
- plug dimensions straight (L x W x H) 20 x 12 x 10 mm / 13/16" x 1/2" x 3/8"
- plug dimensions angled (L x W x H) 15 x 13 x 10 mm / 9/16" x 1/2" x 3/8"
- gold plated tips
- gold finish
- low capacitance cable for maximum signal transparency
- flexible oxygen free copper conductor 7 / 0.16 mm
- stiff PE insulation
- braided tinned copper shielding 6 x 16 / 0.12 mm
- black outer PVC jacket
- capacitance cond./shield less than 8 pF/decimeter
- conductor resistance of 4 mOhm/decimeter
- operating temperature -15°C to +70°C / 5° F to 158° F
- diameter 4 mm / 3/16"
- incl. TX8 wrench, cable cutter
