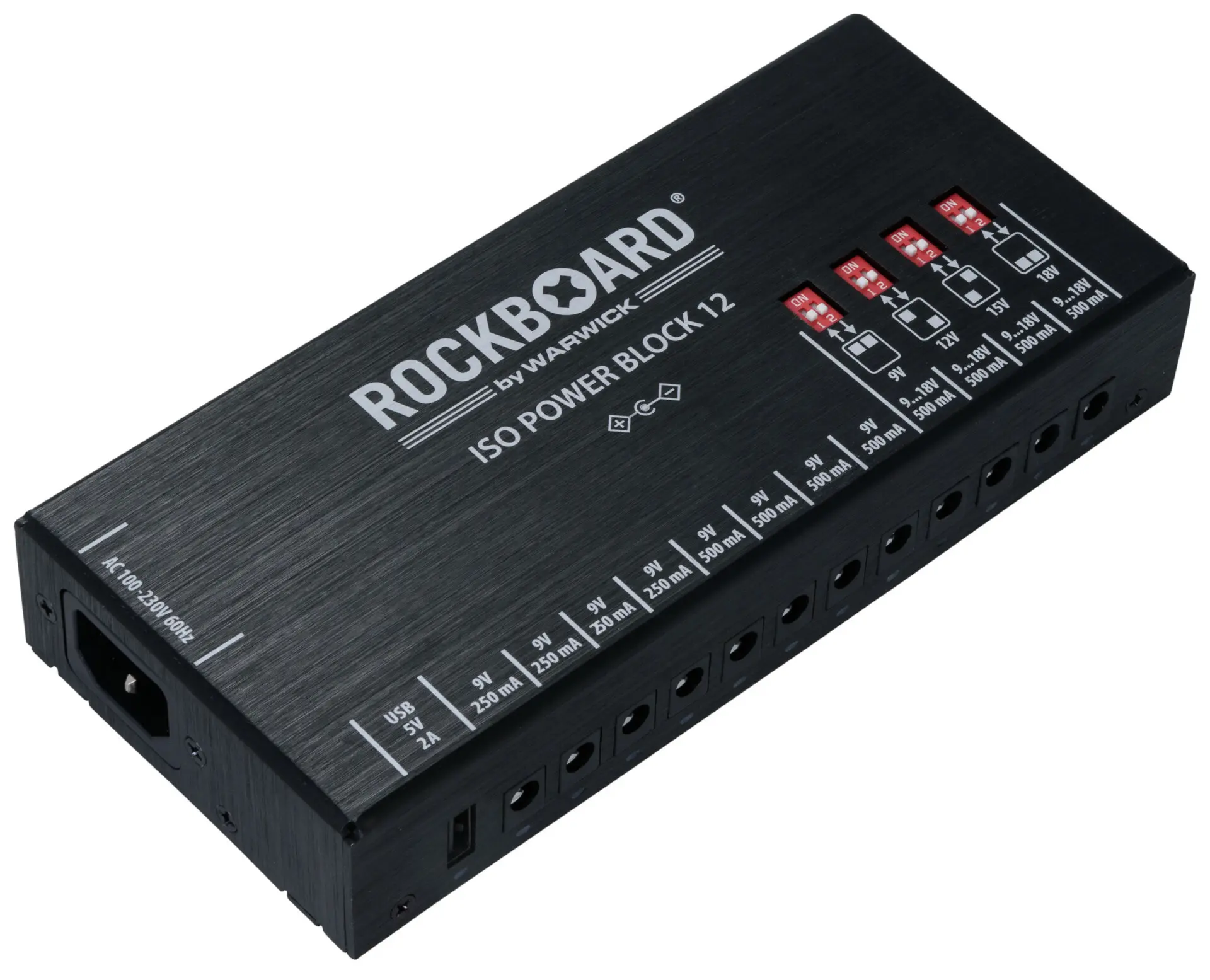

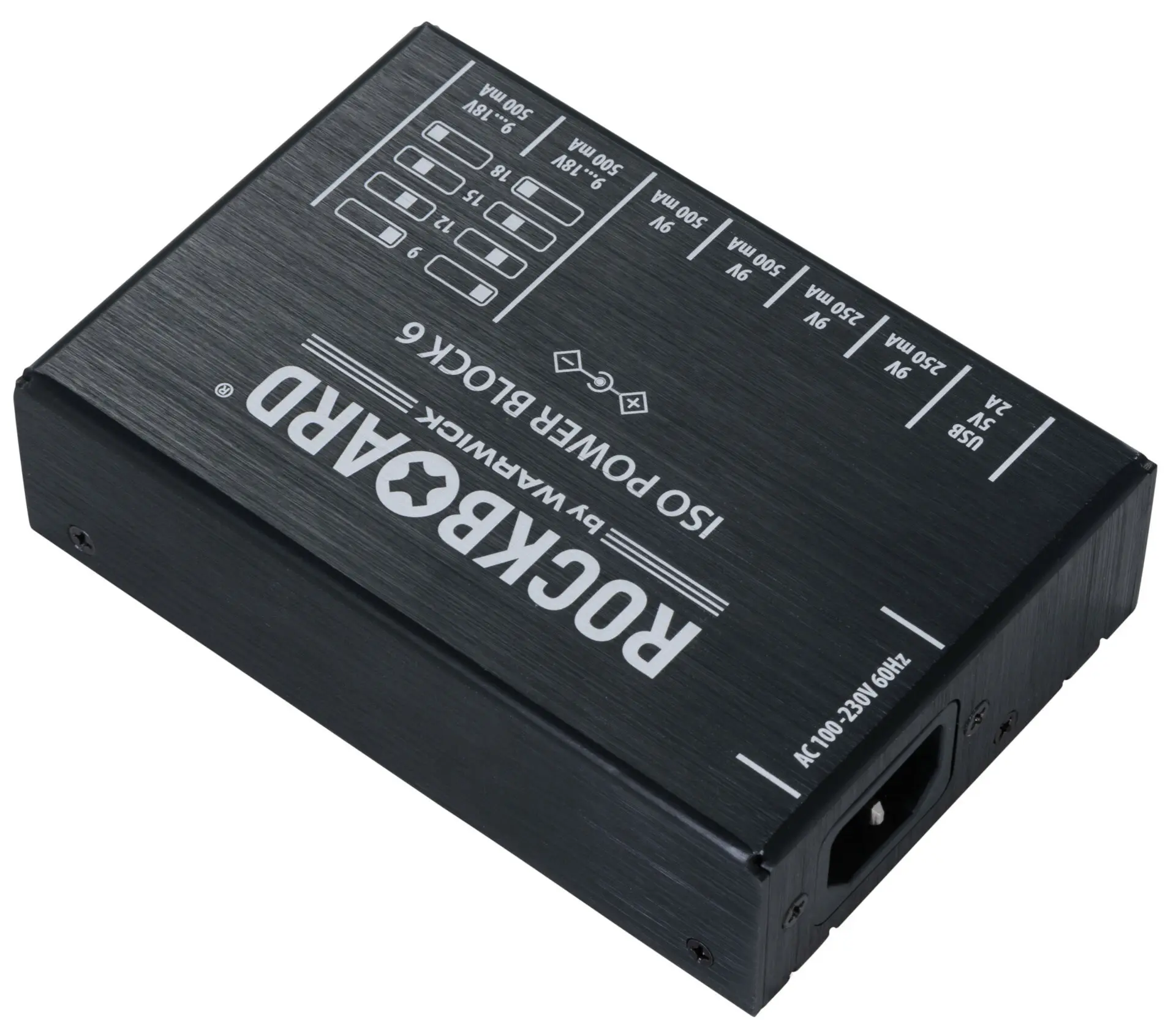

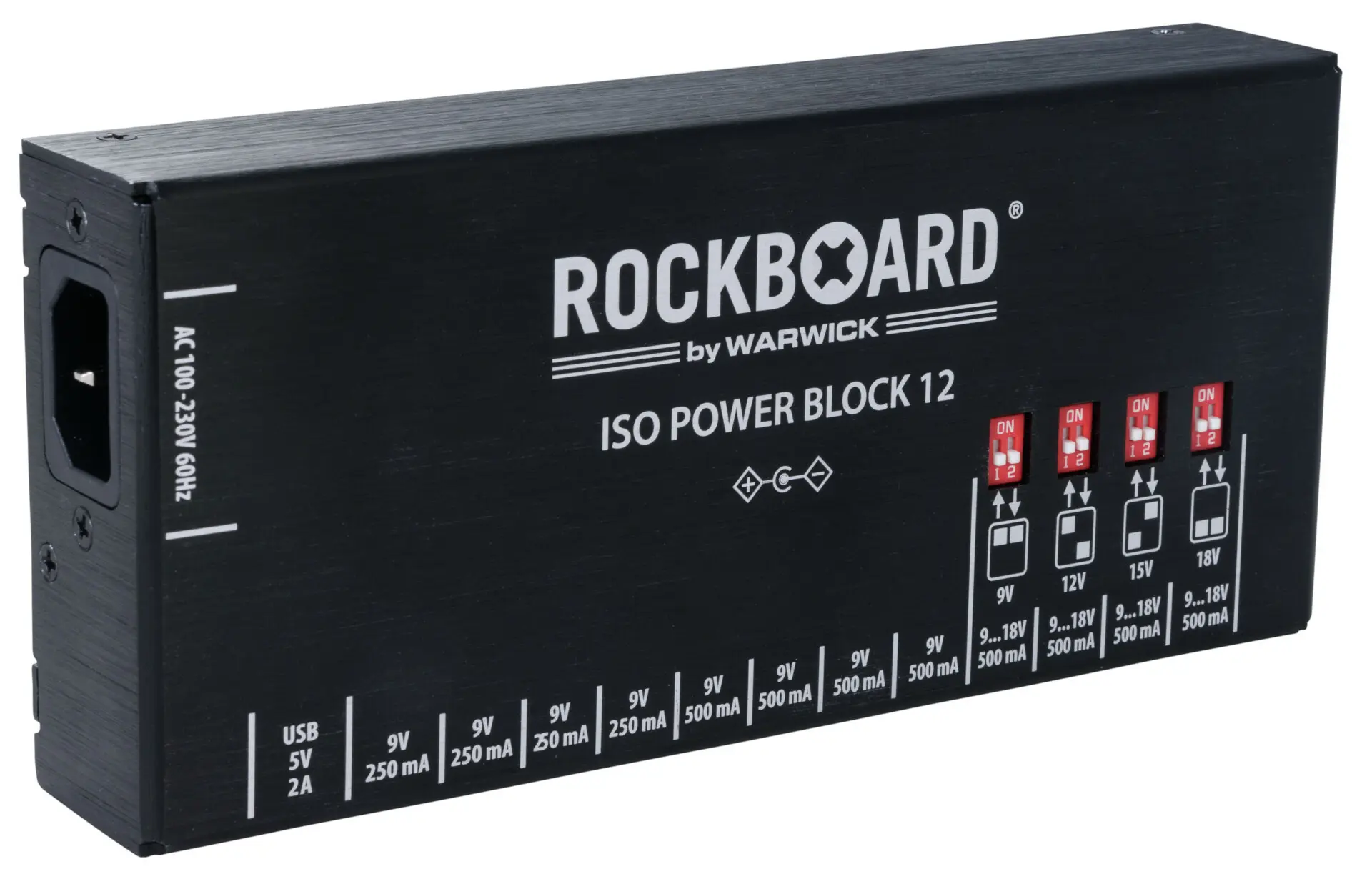

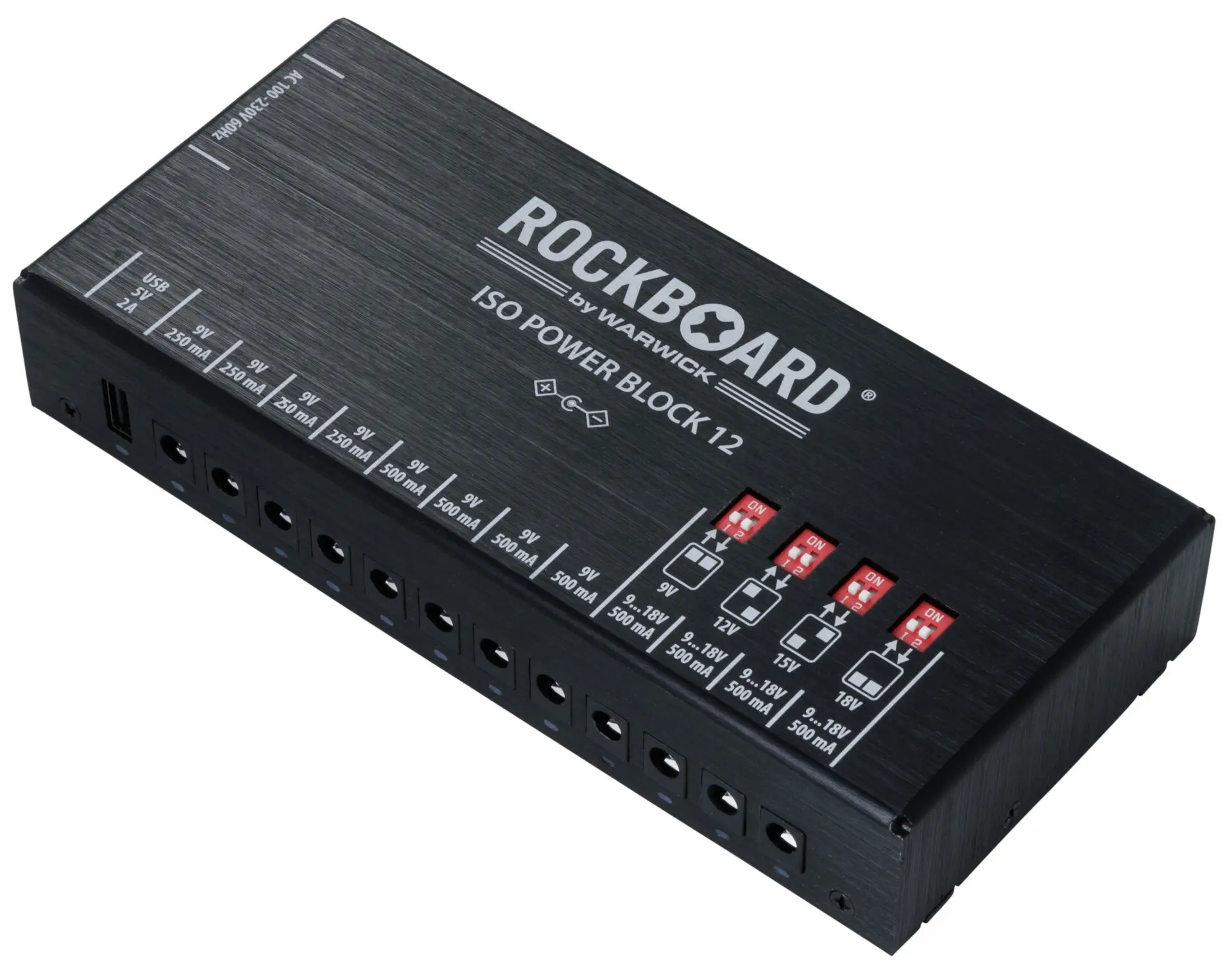

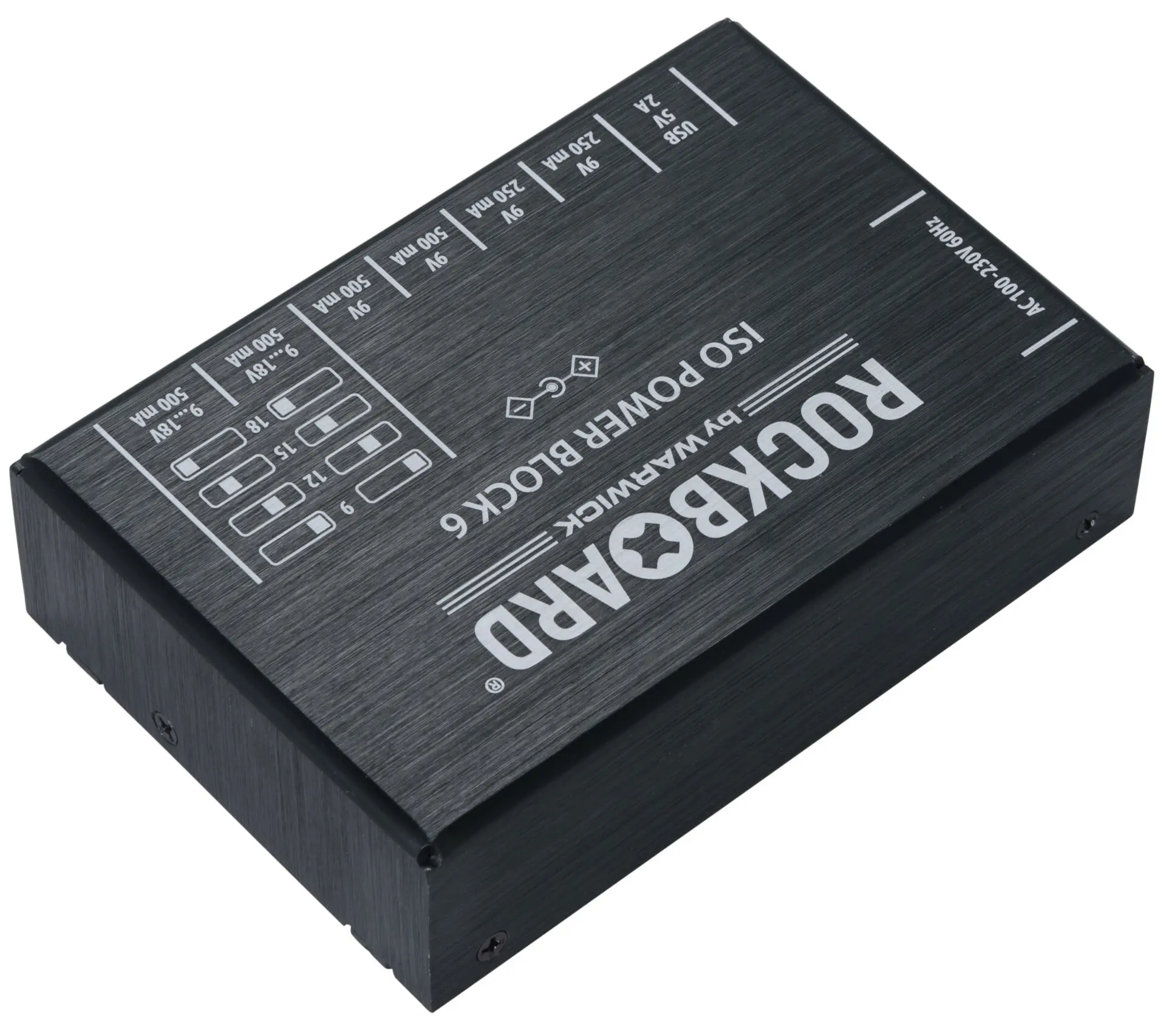

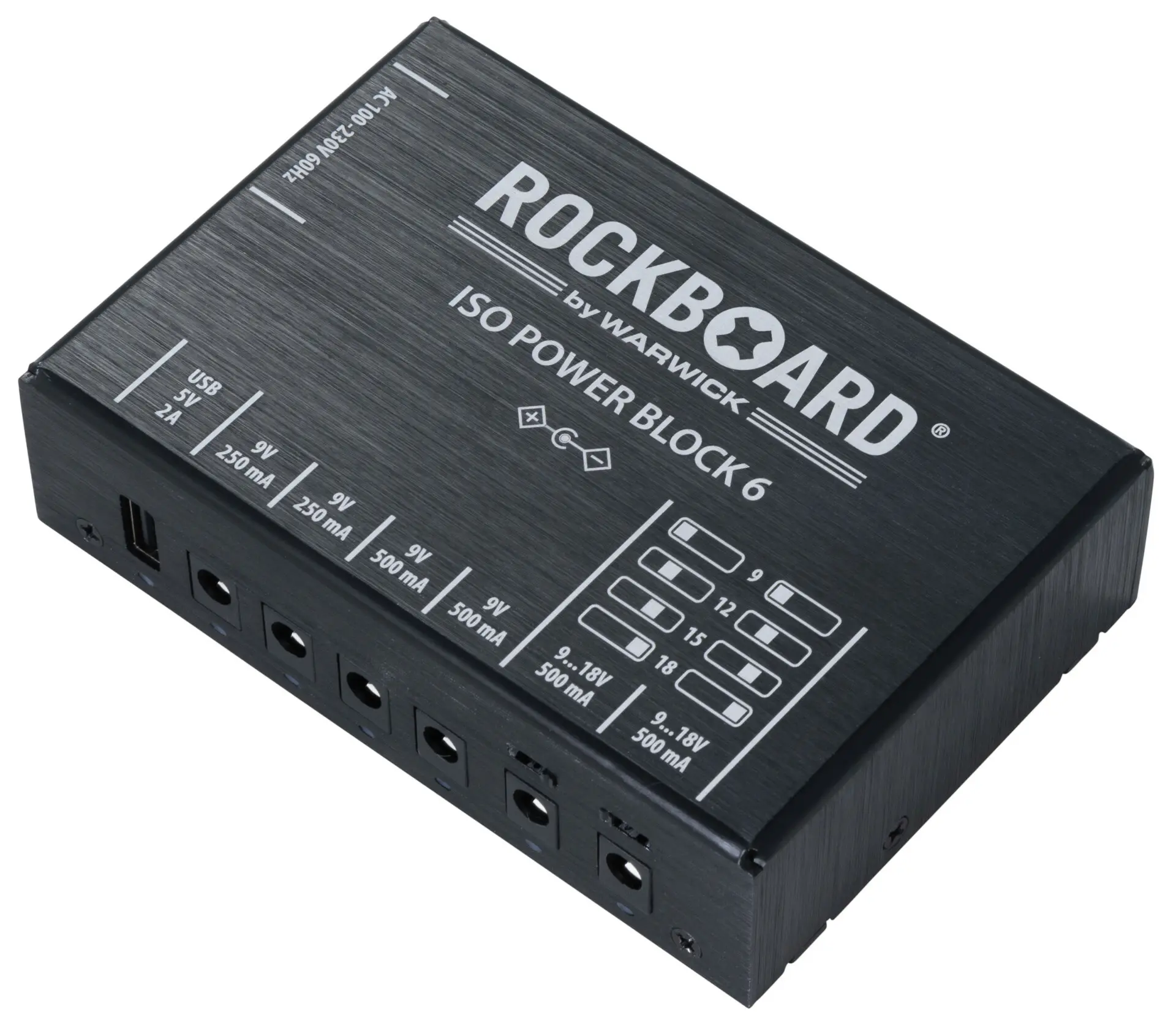

ISO Power Blocks IEC
Power from the wall

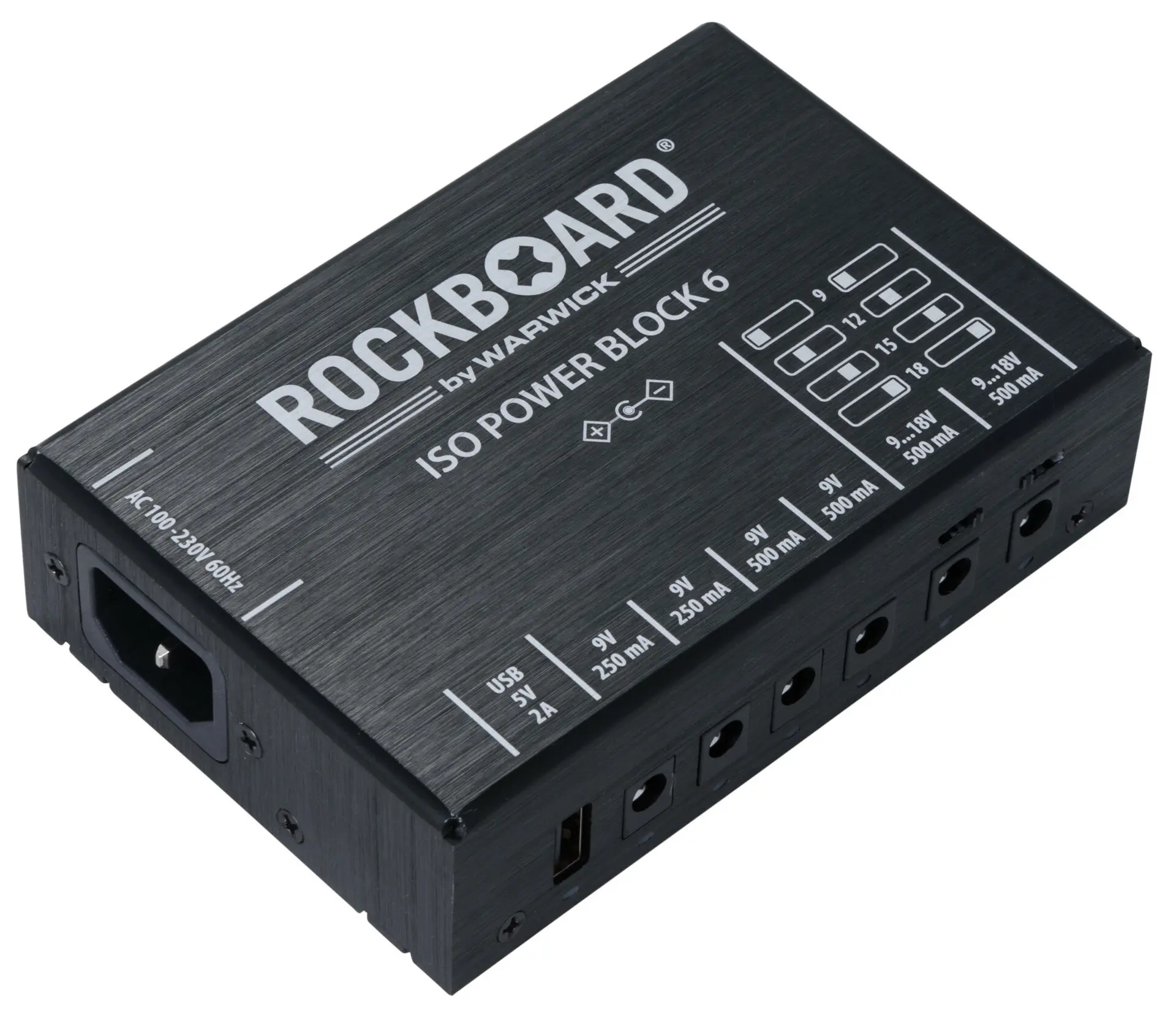

The ISO Power Blocks 6, 9 and 12 IEC are multi-power supplies for effect pedals and provide up to 12 electrically isolated, highly filtered power connections and a 5V USB connection. The multi-power supply is designed to provide noiseless power to up to 12 effects pedals simultaneously, even with different operating voltages.
The advanced filtering technology of the power slots effectively eliminates high-frequency noise. Separate short-circuit protection for each power slot protects the connected effects pedals from damage in the event of a short circuit. Separate LEDs indicate short circuits for each slot separately. Should a short circuit occur, only the affected power slot is switched off, leaving the rest of the effects rig operational.
Choose Variant
- RockBoard ISO Power Block V12 IEC - Isolated Multi Power Supply
- RockBoard ISO Power Block V6 IEC - Isolated Multi Power Supply
- RockBoard ISO Power Block V9 IEC - Isolated Multi Power Supply
Details at a glance
- multi-power supply for effects pedals
- 12 x transformer isolated and highly filtered power slots
- 1 x USB output
- designed for powering up to 6 effects pedals simultaneously without any noise
- advanced filter technology prevents high-frequency noise

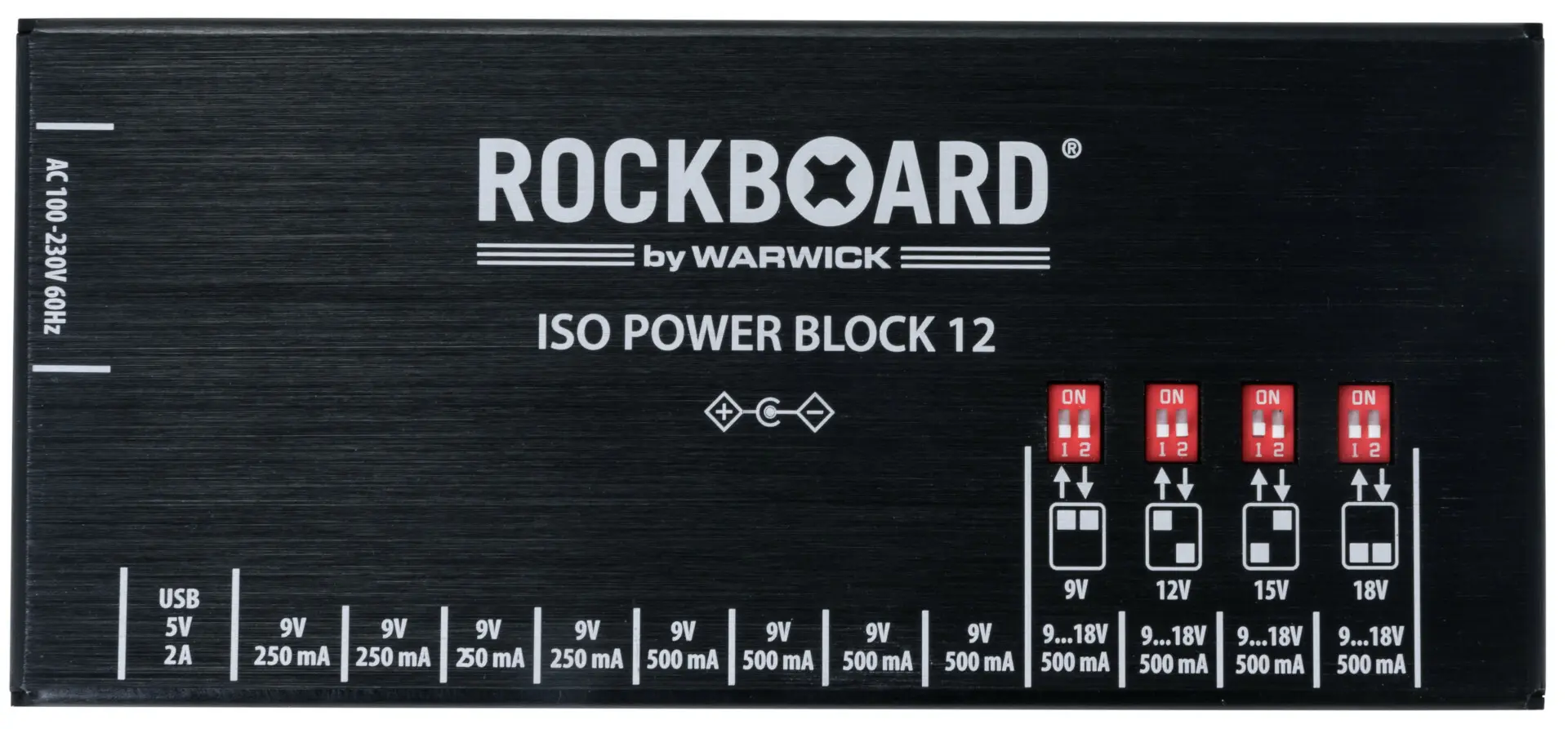

- 4 x switchable power slots (9V DC, 500 mA / 12V DC, 375 mA / 15V DC, 300 mA / 18V DC, 250 mA), 2.1 x 5.5 mm barrel plug, polarity (-) center
- 4 x power slots 9V DC, 500 mA, 2.1 x 5.5 mm barrel plug, polarity (-) center
- 4 x power slots 9V DC, 250 mA, 2.1 x 5.5 mm barrel plug, polarity (-) center
- 1 x USB-A output 5V, 2,000 mA
- short circuit protection for all power slots, designated red LEDs for each slot indicate short circuit or wrong polarity
- international input voltage operation with supply voltages from 100 to 230V AC / 47 - 63 Hz
- compact and sturdy aluminum housing
- including 12 x RockBoard Flat Power Cable 60 cm / 23 5/8" (for connecting effects pedals)
- including 1 x AC power cable, input voltage 100 - 240V AC and 47 - 63 Hz
- dimensions (L x W x H): 195 x 88 x 35 mm (7 43/64" x 3 15/32" x 1 3/8")
- weight: 608 g / 1.34 lbs
